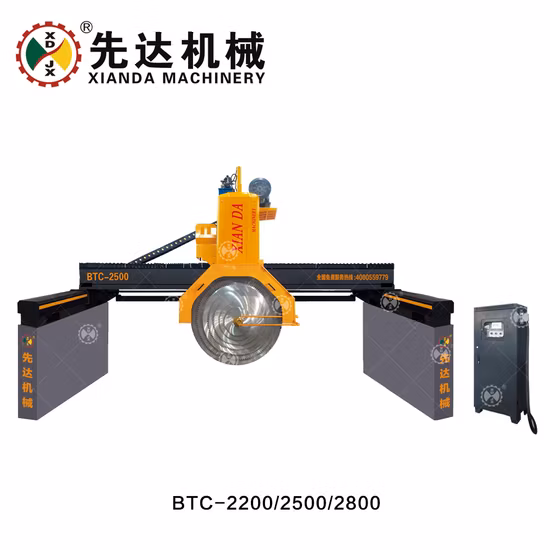

Bridge Block Cutting Machine Multi

Overview

Basic Info.

Model NO.	QSZQ-2200
Cutting Ability	High Speed
Control	CNC
Max. Processing Size(Length)	3300mm
Max. Processing Size(Width)	2300mm
Max. Vertical Stroke	1250mm
Blade Diameter	1600-2000mm
Transport Package	Container
Specification	6900*3800*4200mm
Trademark	HENGLI
Origin	Fujian China
HS Code	8466910000

Product Description

Product DescriptionWhat it is?

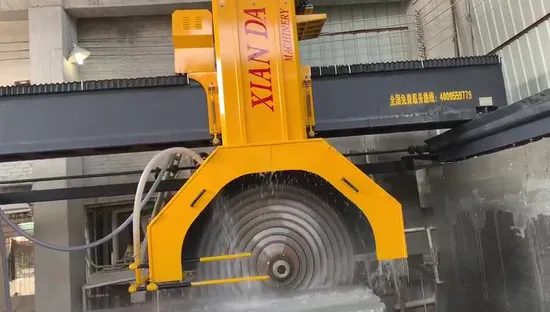

It is designed to cut large-scale blocks into big slabs for a further process. And it is applicable for cutting granite, marble, sandstone, and limestone.
How it work?
It is equipped with a PLC control system with a human-machine interface that can manage the cutting speed, the cutting quantity, and the cutting size.
More Details1. The machine can apply different blades together or a single blade according to requirements. Multiple blades can also be placed in different ways based on needs.
2. Blocks can be placed directly on the ground, so the workbench is not needed. It not only reduces the cost of maintenance but also ensures the block is stable during processing.
3. The cutting thickness can be adjusted on needs.
Product Parameters

Parameters	Unit	QSZQ-2200
Blade Diameter	mm	1600-2200
Max. Vertical Stroke	mm	1250
Max. Processing Size (Length)	mm	3300
Max. Processing Size (Width)	mm	2300
Main Motor Power	Kw	37
Water Consumption	m3/h	8
Overall Dimensions (L*W*H)	mm	6900*3800*4200
Total Weight	T	Around 9.3

Our Service

Pre-service

1. Before the sale, we welcome customers to visit our factory or to help arrange to visit our existing customers' factories.
2. Professional purchasing advice.
3. We guarantee all of our machines will be checked and tested before handing over to our customers.

After Sales

1. Installation services: In many counties including America, Canada, Malaysia, Singapore, Africa (most African countries), Australia, and New Zealand, we have some regular staff or working partners in those countries to provide service. For other counties, we will send staff from our company to provide installation service.
2. One-year warranty for all of our machines.
3. For those machines out of warranty, we can still provide technical support.
4. We work with many transportation companies with a good reputation and competitiveness in price.

FAQ

Q: Are you a manufacturer?
A: Yes, we are a professional and top stone machine manufacturer for more than 15 years in China. We have our own factory. Also, we have many authorized agents all over the world to take care of machines after selling service.
Q: Can I get a machine according to my own requirements?
A: Yes. If customers have special requirements for machines. We are happy to adjust or redesign our machines to meet the needs of customers.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: All of our machines are easy to operate. Additionally, an English instruction manual will send to you with the machine. If there is still have any questions, we will provide a free professional online guide for you until you could use the machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send the machine to your country port or to the door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after-sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealers to do machine installation and maintenance.
